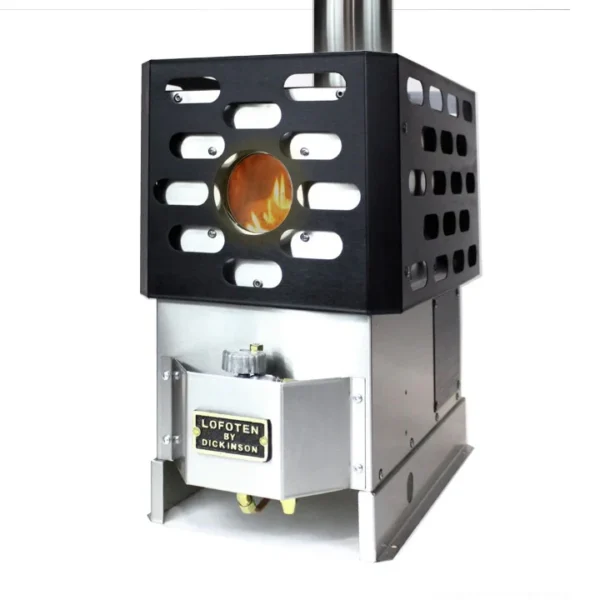

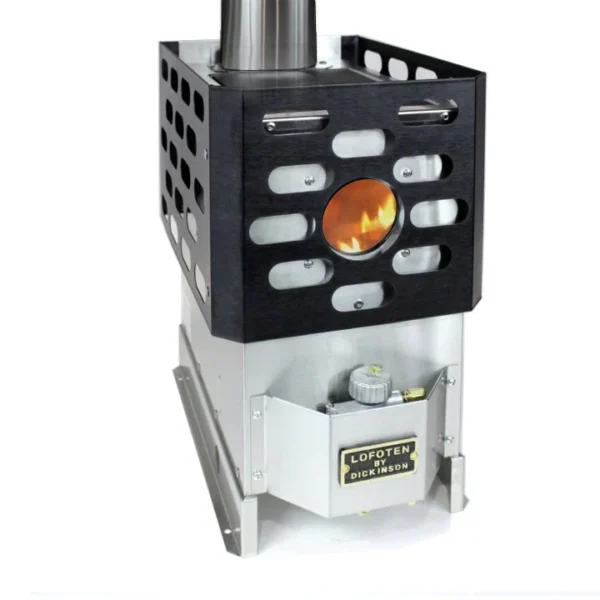

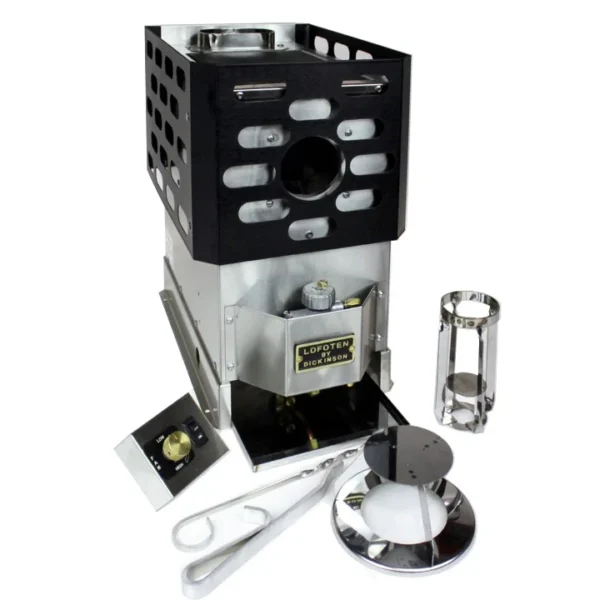

The Lofoten Floor Mounted Heater is a compact floor mounted heater. An attractive, economical diesel burning heater, providing comfortable, dry heat with a small cast iron cooktop for cooking.
- Efficient and Compact: The Lofoten Heater is a small, budget-friendly diesel heater designed for floor mounting. It provides comfortable, dry heat and features a small cast iron cooktop for cooking.
- Easy Installation:
- Requires 4” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Requires a permanent fresh air vent in the unit’s area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Sailboat Installation:
- Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
- Draft Assist Fan:
- Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Options:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
- Specifications:
- Width: 10.75″
- Height: 18″
- Depth: 17″
- Weight: 31 lbs.
- Fuel Consumption (24hr):
- Low: 1.29 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Follow the installation guidelines for optimal performance.
