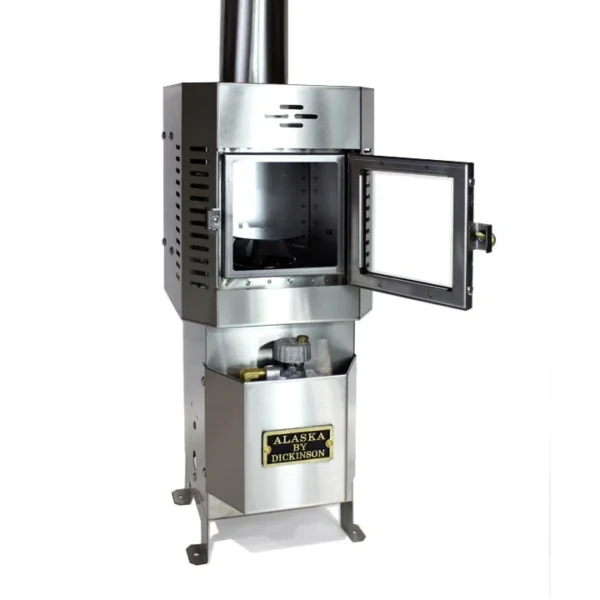

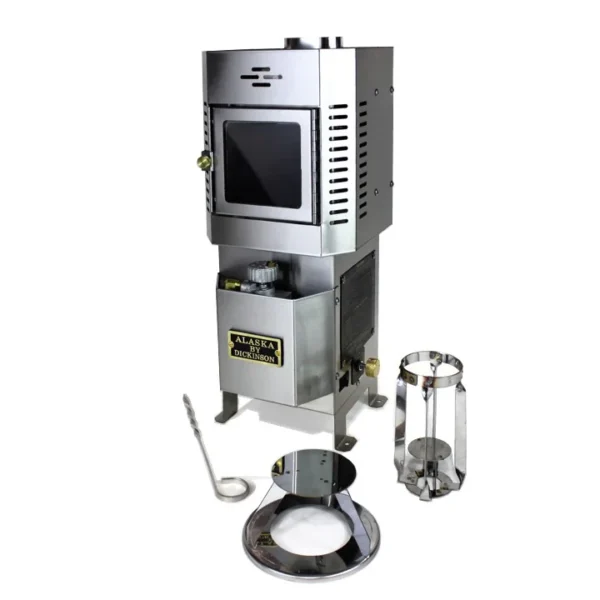

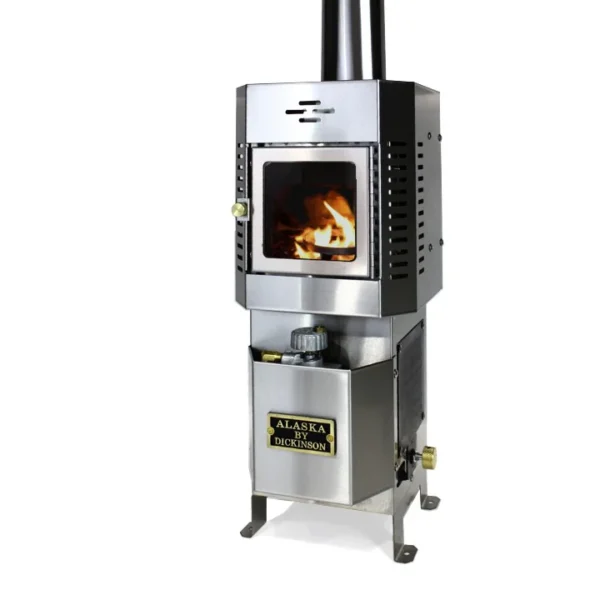

The Alaska Floor Mounted Heater is a compact bulkhead mounted heater. An attractive, economical diesel burning heater, providing comfortable, dry heat.
- Efficient and Compact: The Alaska Heater is a small, budget-friendly diesel heater designed for floor mounting. It provides comfortable, dry heat.
- Easy Installation:
- Requires 3” diameter chimney parts.
- Needs a minimum 4ft, maximum 8ft of chimney (straight run with no elbows is best).
- For chimneys 6ft or longer, we recommend a barometric damper.
- Requires a permanent fresh air vent in the unit’s area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to remove moisture inside the vessel.
- Sailboat Installation:
- Should face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow even on heels up to 15 degrees.
- Draft Assist Fan:
- Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Valve is factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Option:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water.
- Specifications:
- Width: 8.75”
- Height: 20.75”
- Depth: 9.5”
- Weight: 19 lbs.
- Fuel Consumption (24hr):
- Low: 1.29 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Follow the installation guidelines for optimal performance.
Diesel Heater Installation & Operating Manual
Alaska Information Sheet
